Performance & Testing
To protect a home or business from extreme weather events or unwanted intruders, Invisi-Maxx high performance window and door screens are the only product which can provide complete peace of mind.
Specifically designed to withstand the force of windborne items under cyclone conditions and resist knife and impact attack, Invisi-Maxx screens have been developed and tested to both meet and exceed Australian Standards.
The high performance screens are constructed from strands of high tensile marine grade stainless steel, woven into an exceptionally strong mesh and attached to a heavy duty frame using a unique patented extreme grip protection system. The result is a multi-purpose product which not only provides protection during extreme weather situations, but also provides the ultimate in property security, all without compromising light, air or views.
Australia’s northern coastlines are exposed to the annual threat of tropical cyclones, which bring strong winds, torrential rain and storm surges with a potentially devastating impact on thousands of people, homes and businesses. In cyclonic conditions winds can easily reach over 100 km per hour, turning everyday objects into dangerous windborne debris.
Invisi-Maxx window and door screening products are designed to resist such projectiles, protecting both people and property from harm in these potentially deadly situations. Invisi-Maxx is available in 0.8mm mesh (appropriate for most residential applications) and 1.2mm mesh option when a further level of protection is required such as for commercial applications or extreme cyclone locations.
Invisi-Maxx screens utilise a unique combination of superior materials, mesh construction and mesh retention methods to create a screen which dissipates the energy from projectiles and prevents debris from entering buildings.
Under Australian Standards, screens must be independently tested to exceed the performance requirements for cyclone regions C and D to achieve cyclone compliance. While Australian Standards require screens in extreme cyclonic regions (region D) to resist impacts from debris travelling at 35.2 m/sec, Invisi-Maxx screens have been demonstrated under NATA certified testing to withstand projectiles up to 44m/sec.
Mesh size* (mm)
Maxx screens are the ideal year-round screening product as they can withstand the rigors of exposure to the coastal environment. This resistance has been proven in the Australian Standards testing environment, where the mesh easily passed the Neutral Salt Spray Test. While a mesh must last 240 hours with no signs of corrosion to pass the test, Invisi-Maxx mesh was documented to undergo more than 2000 hours with no corrosion evident.
For those seeking the maximum in security protection, the same qualities which make Invisi-Maxx cyclone compliant make it the ideal screening system to protect homes and business from unwanted intruders. With its heavy duty framing, tamper-proof mesh retention system and expertly woven mesh, Invisi-Maxx screens have been tested to exceed the impact resistance requirements of Australian Standards for window and door security.
Under the Knife-Shear Test, which measures mesh strength, a knife blade is drawn along a panel three times, with a new blade for each draw. Invisi-Maxx passes the Knife-shear test in both horizontal and vertical directions, easily outperforming many competing products. Under the Dynamic Impact Test, designed to simulate a kick to a security screen door, Invisi-Maxx again easily passes, due to the strength of the mesh retention system which ensures mesh resists being pulled from the frame.
These test results demonstrate that Invisi-Maxx has proven itself as an extremely robust security screening system which provides the ultimate defence against unwanted intruders. As well as the ultra-security protection and peace of mind that comes with installing Invisi-Maxx window and door screening products, a 15 year warranty provides additional confidence in the enduring quality of this home and business protection product.
Once you have decided on the type of Invisi-Gard Security Screen you require, you next need to consider the colour.

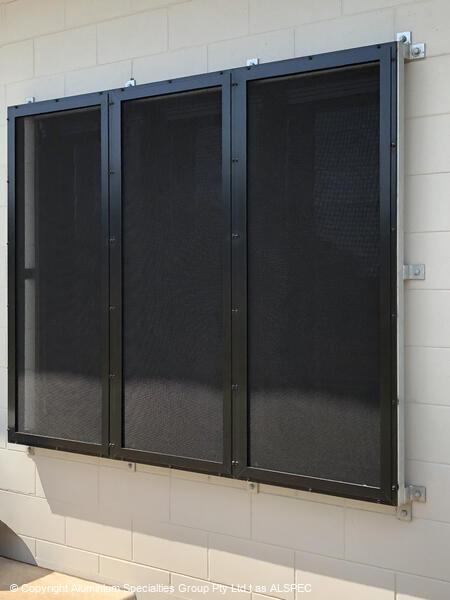

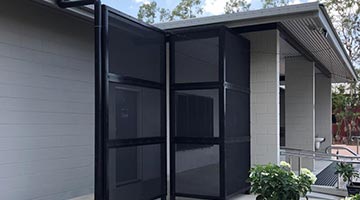

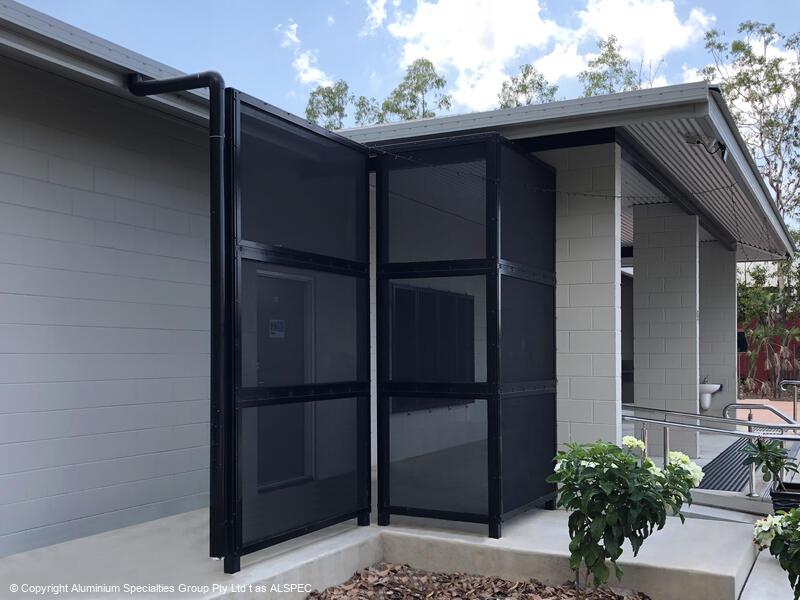

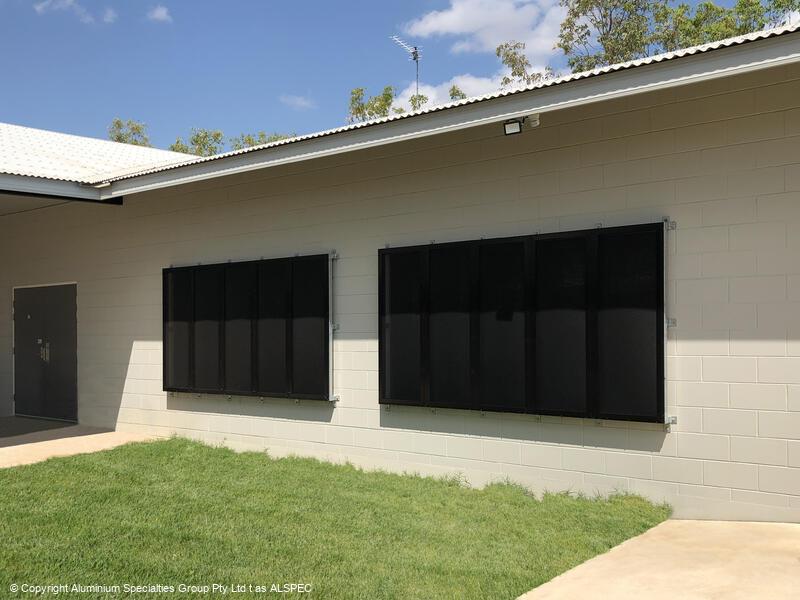

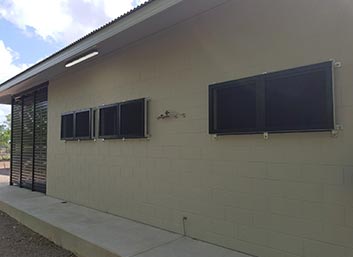

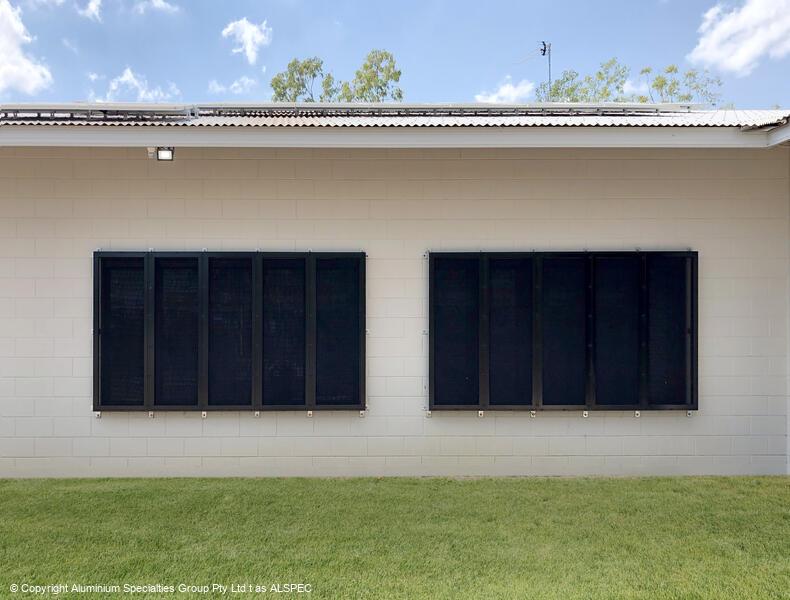

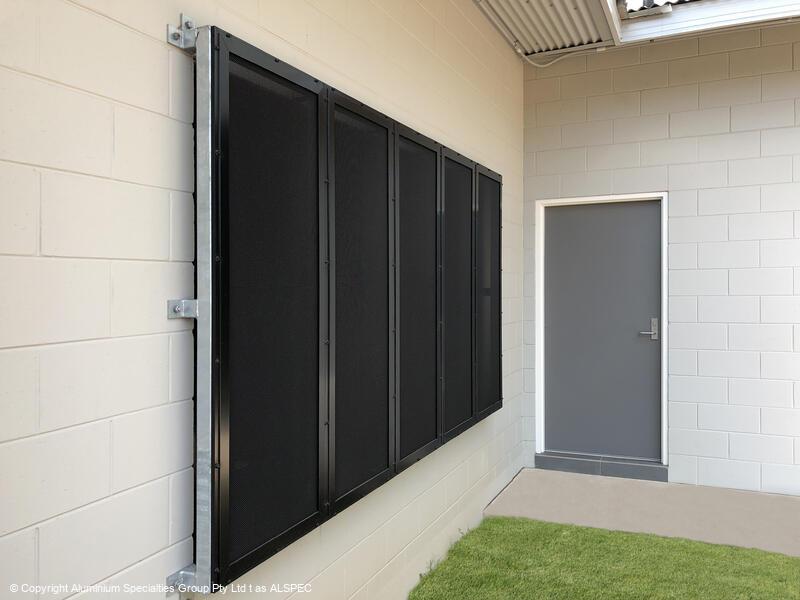

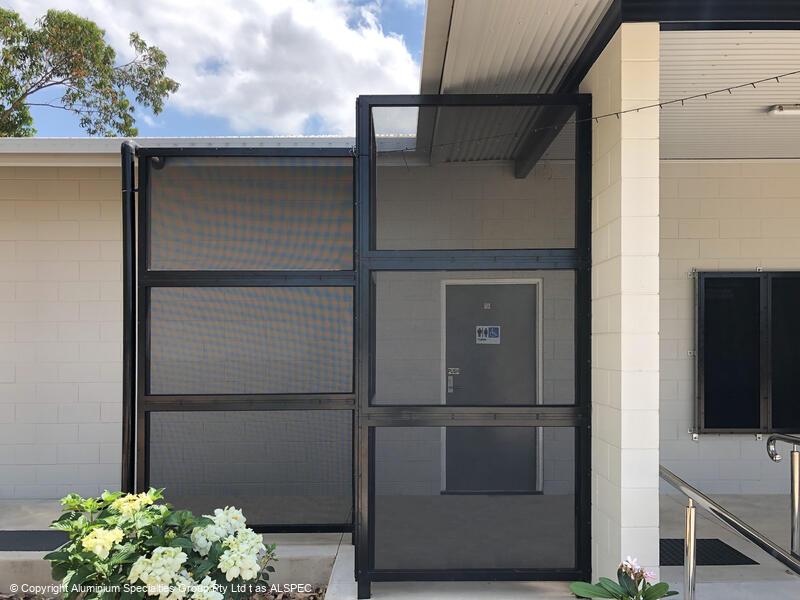

A new community cyclone shelter in Darwin has maximum protection from windborne debris thanks to the addition of Alspec Invisi-Maxx stainless steel security screens.

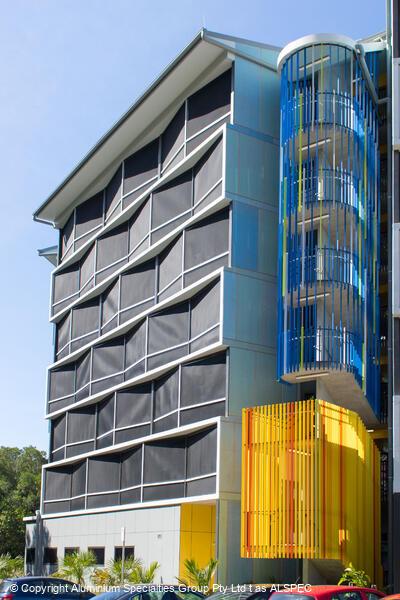

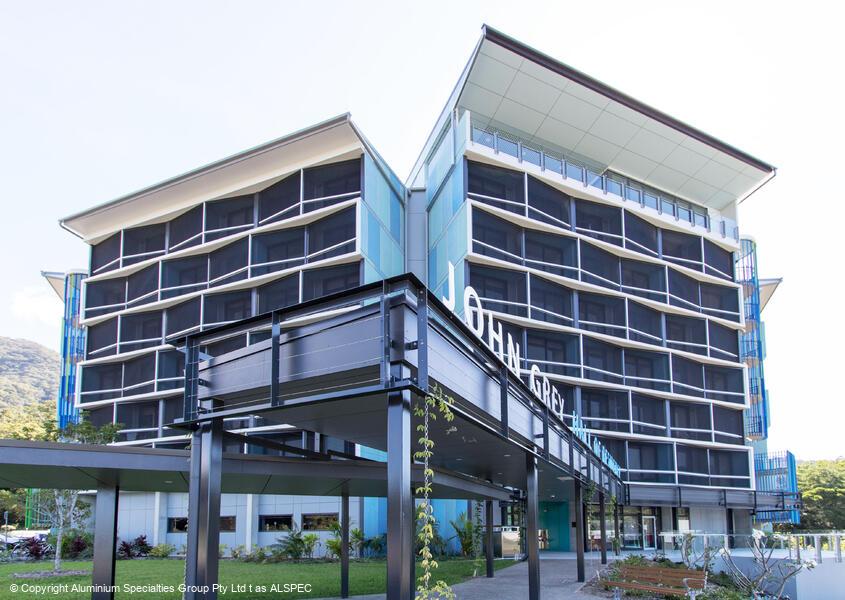

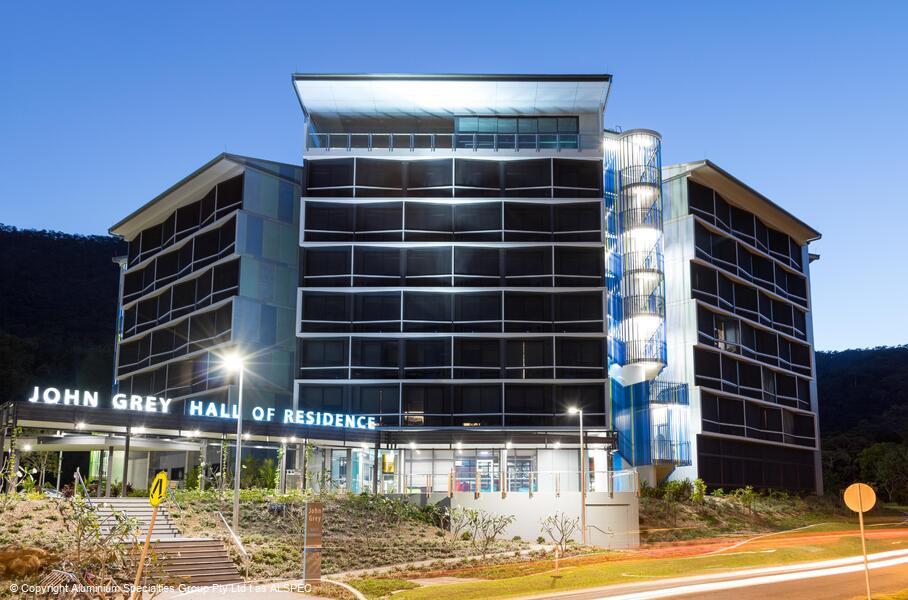

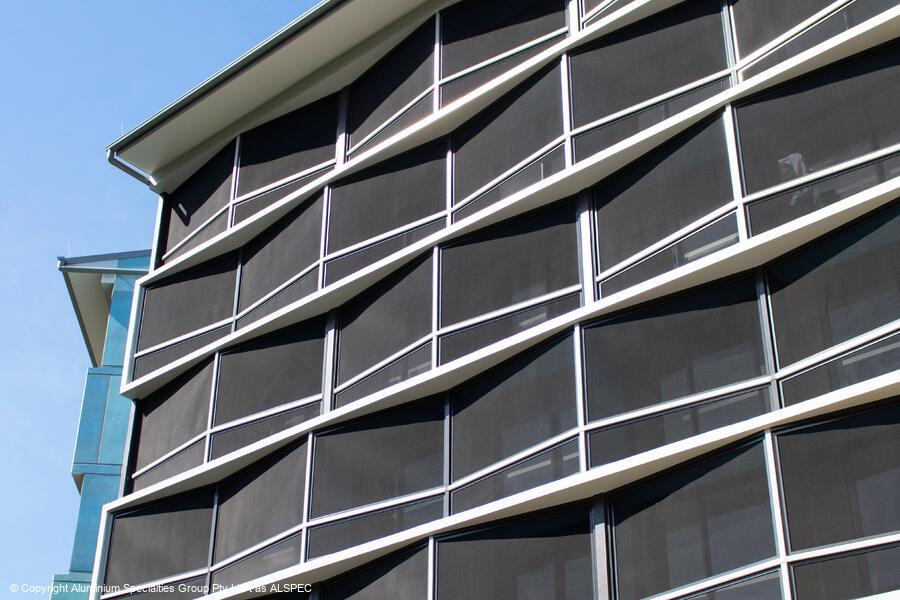

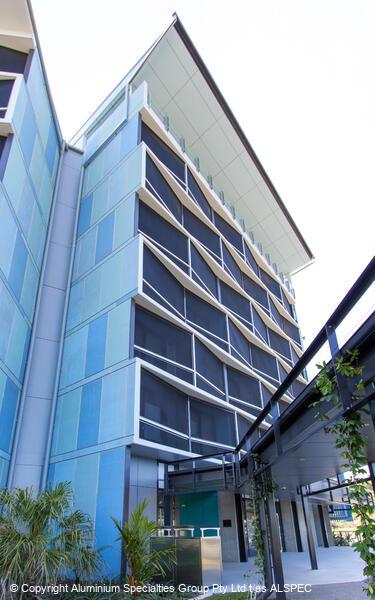

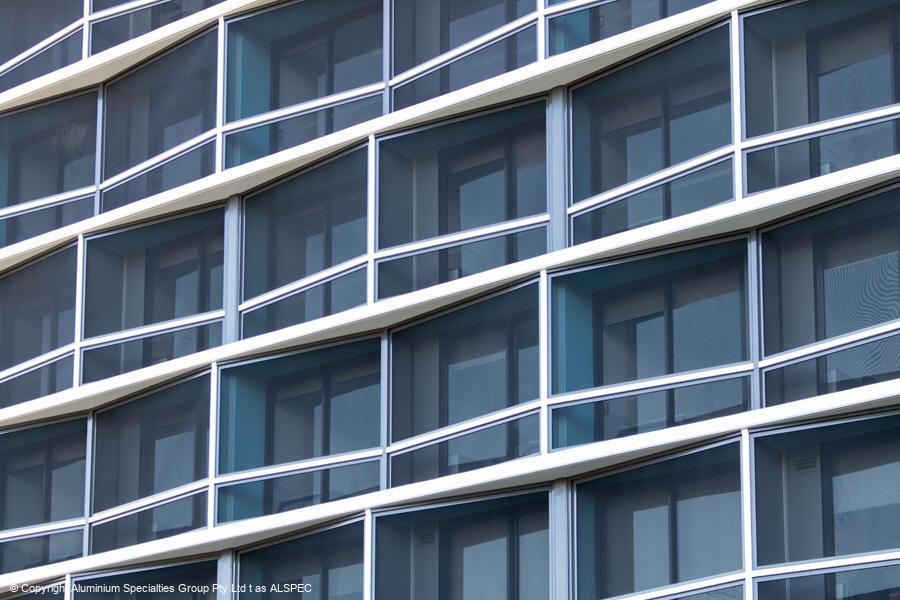

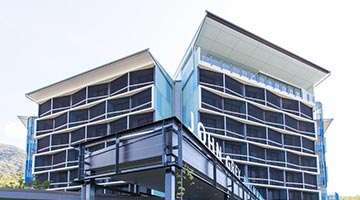

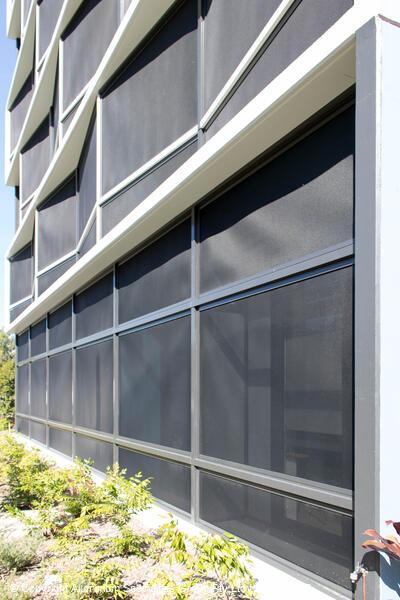

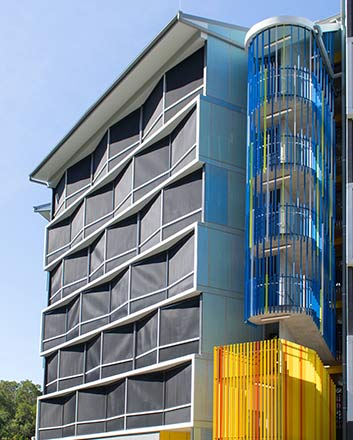

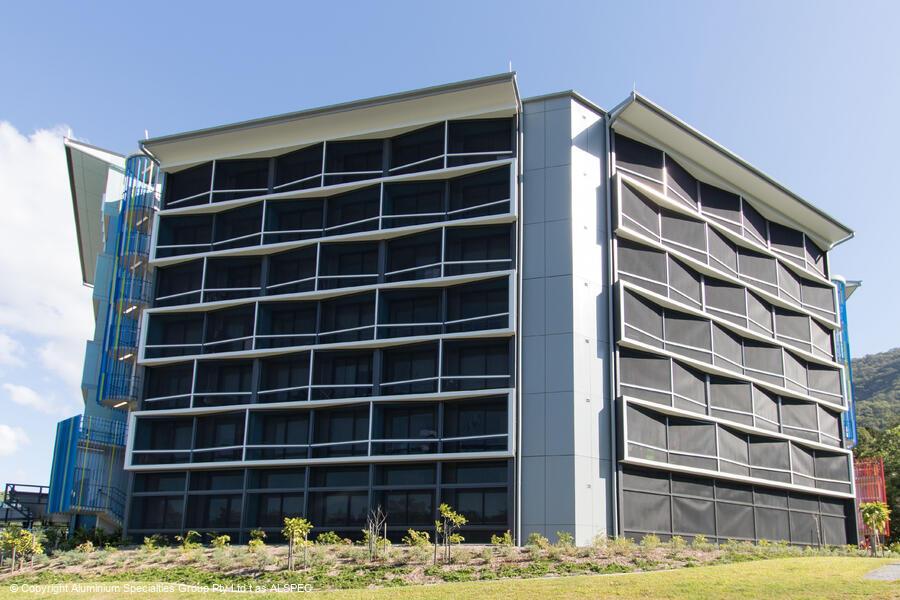

Invisi-Maxx Security Screening has been used in a practical, creative manner to turn a safety product into a striking design feature at James Cook University in Cairns.
Alspec's 15-year standard warranty has been tailored specifically for the
Alspec® will cover the aluminium framing and/or mesh used in the product to be free of any defects from the date of delivery to cover any defects in manufacturing & workmanship when the product has been fabricated and installed in accordance with the
This 15 year warranty is effective for all installations that have taken place from the 1st of July 2014. As with any valued purchase, effective maintenance is an essential part to prolonging the life of the product and is essential to maintain the rights as stated within this warranty. The care & maintenance instructions of this warranty must be followed to ensure the product will be eligible for any warranty claims.
This warranty applies to all
This 15 year standard warranty for
The aluminium framing warranty provided for
Locks and screen accessories that are used in the
The 15 year warranty for
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. The consumer is entitled to a replacement or refund of a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have these goods repaired or replaced if the goods fail to be of an acceptable quality and the failure does not amount to a major failure.
Notwithstanding the preceding statement, Alspec's liability for a breach of a consumer guarantee, condition or warranty implied or created by the Competition and Consumer Act 2010 (Cth) (the “Act”), for any Products not of a kind ordinarily acquired for personal, domestic or household use is limited, to the extend permissible by law and at Alspec’s option in relation to the Products supplied, to:
Invisi-Gard® is intended for use in residential applications for a 15 year period, and a commercial warranty pending on application of up to 15 years which are assessed on a case by case basis. Damages that are not covered are as follows:
To make a warranty claim, the Purchaser must make initial contact with the Licensed
This is to be done within a 30-day period of identifying the fault, detailing a description of the fault with details of how and when this has occurred, provide photos if possible as well as a copy of the proof of purchase & installation provided by the
Constructed from Architectural Grade Aluminium and 316 Stainless Steel Mesh, both of these metals are highly corrosion resistant and exceptionally strong. With a moderate amount of maintenance, your
Rinse well with mains water to remove any detergent residue paying particular attention to ensure ALL residue is flushed from the mesh retaining areas of the frame.
Only mains water is to be used as recycled, bore or tank water is unacceptable and may lead to detrimental corrosion effects. Care should be taken to avoid excessive amounts of water entering the main lock and auxiliary 3 point locks.
Strong detergents and abrasive cleaners MUST NEVER be used to clean your
Periodic lubrication of the main lock and auxiliary lock components should only ever be done using graphite powder. Liquid or aerosol lubricants can cause corrosion and damage the locking mechanism.
External contaminants that come into contact with the
To ensure the
|Environment||Recommended Maximum Maintenance Interval
Indicative maintenance schedule only.
Greater than 10km radius from oceanfront or saline bay.
|Every 6 months|
Within 1km to 10km radius of an oceanfront or saline bay.
|Every 2 to 3 months|
Within 500m to 1km radius of an oceanfront or saline bay.
|Every 2 to 4 weeks|
Within 500m radius of an oceanfront or saline bay.
|Every 1 to 2 weeks|
